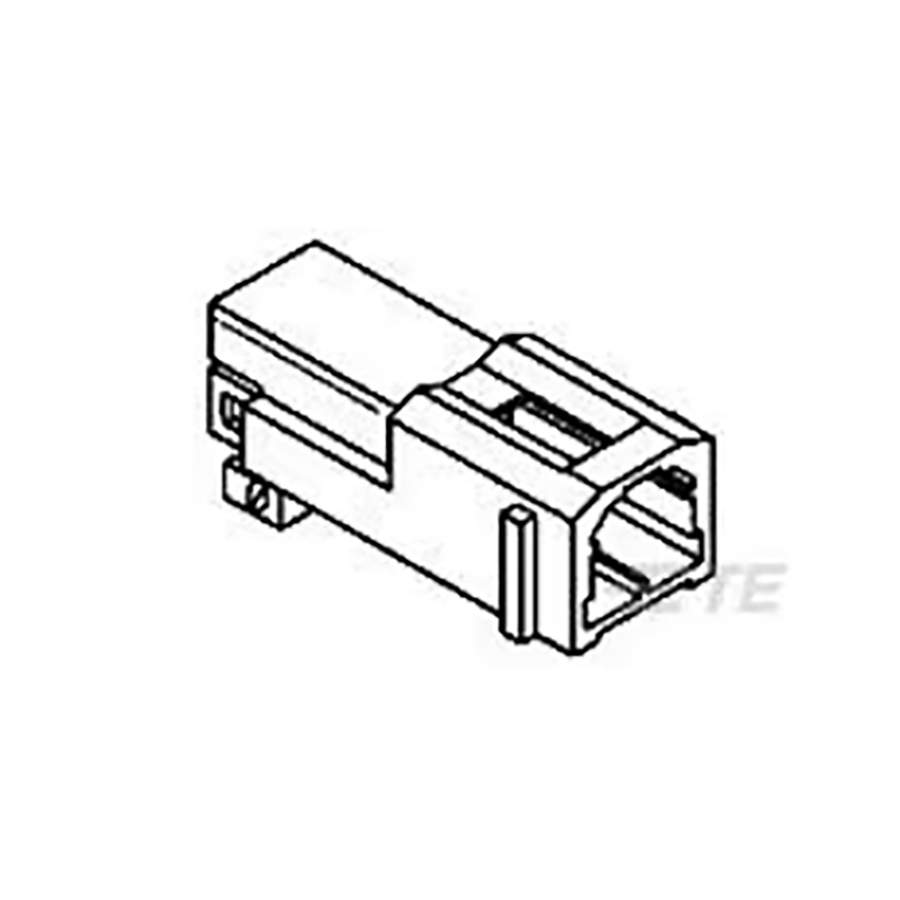

368545-1
Manufacturer:
TE Connectivity
Mfr.Part #:
368545-1
Datasheet:
Description:
Automotive Connectors Free Hanging Accessory Type:Cap Number of Positions:2 Male 20 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 11.6 mm |
| Width | 15.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 30.8991 mm |
| Packaging | Bulk |
| Depth | 30.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 3.5 mm |
| Current Rating | 14 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Body Material | PBT |
| Connector Type | Receptacle, Tab |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Natural |
| Mating Tab Width | 1.8 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Wire Gauge Range | 20 AWG to 16 AWG |
| Accessory Type | Cap |
